Product Description:

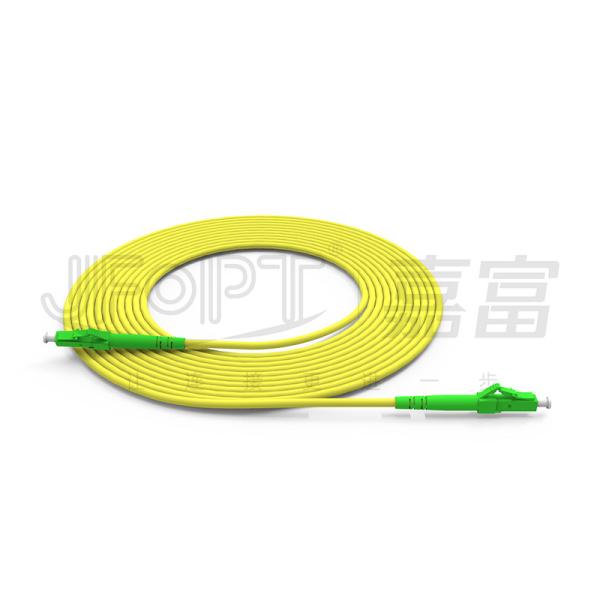

Fiber Optic Patch Cord
The Fiber Optic Patch Cord from JFOPT is a high-quality and
reliable solution for all your fiber optic connectivity needs. It
is a single mode 2.0mm LC/UPC DX fiber optic patch cord, designed
and manufactured in China with CE and ISO9001 certification. This
patch cord is suitable for a variety of applications and is
guaranteed to provide excellent performance and durability.
The Fiber Optic Patch Cord is an essential component in fiber optic
networks, providing a secure, efficient, and customizable solution
for connecting fiber optic cables. With its high tensile strength,
low insertion loss, and high repeatability, it is a reliable and
durable option for various applications.
Product Features:
- High Tensile Strength: The Fiber Optic Patch Cord has a minimum tensile strength of 100N,
making it highly durable and able to withstand pulling and twisting
without breaking.
- Low Insertion Loss: With advanced manufacturing techniques and high-quality materials,
the patch cord has low insertion loss, ensuring minimal signal loss
during transmission.
- High Repeatability: The patch cord can be plugged and unplugged over 1000 times
without losing its performance, making it a reliable and
long-lasting solution for fiber optic connections.
- Flexible and Customizable: The Fiber Optic Patch Cord is designed to be flexible, allowing
for easy installation and management. It can also be customized to
meet specific length, color, and connector type requirements.
- Safe and Fire-Resistant: The patch cord's jacket is made of LSZH (Low Smoke Zero Halogen),
PVC (Polyvinyl Chloride), or OFNP (Optical Fiber Nonconductive
Plenum) materials, making it safe and fire-resistant.
Applications:
The Fiber Optic Patch Cord is widely used in various industries,
including telecommunications, data centers, local area networks,
and more. It is suitable for both indoor and outdoor environments,
making it a versatile and reliable solution for high-speed data
transmission.
Technical Specifications:
| Connector Parameters |
| Connector Characteristics | Connector Type | LC |
| Polish Type | APC |
| Ferrule Type | Grade A zirconia ceramic ferrule |
| Matching Cable Outer Diameter | 2.0mm |
| Connector Color | green |
| Insertion Loss | ≤0.3dB/≤0.2dB/≤0.15dB |
| Return Loss | SM: UPC≥50dB; APC≥60dB; MM: ≥25dB |
| Repeatability | ≤0.2dB |
| Interchangeability | ≤0.2dB |
| Cable Characteristics | Fiber Type | G652D/ G657A/ G655 |
| Fiber Count | simplex |
| Jacket Material | PVC/LSZH/PU/PE or customized |
| Jackt Color | yellow |
| Temperature Characteristics | Operating Temperature | -20~70℃ |
| Storage Temperature | -40~80℃ |
| Cable Mechanical Performance |
| Items | Specifications |
| Fiber Count | 1 |
| Tension(Long Term)/ N | 60 |
| Tension(Short Term)/ N | 100 |
| Crush(Long Term)/ N/10cm | 100 |
| Crush(Short Term)/ N/10cm | 500 |
| Min. Bend Radius(Dynamic)/mm | 50 |
| Min. Bend Radius(Static)/mm | 30 |
| Operating Temperature/℃ | -20～+60 |
| Storage Temperature/℃ | -20～+60 |
| Fiber Parameter |
| Items | Unit | G.652D | G.657A1 | G.657A2 |
| Mode Field Diameter | 1310nm | μm | 9.1±0.4 | 8.8±0.4 | 8.8±0.4 |
| 1550nm | μm | 10.4±0.5 | 9.8±0.5 | 9.8±0.5 |
| Cladding Diameter | μm | 125±1 | 125±0.7 | 125±0.7 |
| Cladding Non-Circularity | % | ≤1 | ≤0.7 | ≤0.7 |
| Core-Cladding Concentricity Error | μm | ≤0.6 | ≤0.5 | ≤0.5 |
| Coating Diameter | μm | 245±7 | 245±5 | 245±5 |
| Coating Non-Circularity | % | ≤6.0 | ≤6.0 | ≤6.0 |
| Cladding-Coating Concentricity Error | μm | ≤12.0 | ≤12.0 | ≤12.0 |
| Cable Cutoff Wavelength | nm | λcc≤1260 | λcc≤1260 | λcc≤1260 |
| Cable Attenuation Coefficient | 1310nm | dB/km | ≤0.4 | ≤0.4 | ≤0.4 |
| 1550nm | dB/km | ≤0.3 | ≤0.3 | ≤0.3 |
Ordering Information:
To order the Fiber Optic Patch Cord from JFOPT, please provide the
following information:
- Model Number
- Quantity
- Jacket Type
- Connector Type
- Length
- Other Customization Requirements
For more information or to place an order, please contact us at sales@jfopt.com .
Thank you for choosing JFOPT for all your fiber optic connectivity
needs.
Customization:
Brand Name: JFOPT/OEM
Model Number: Single Mode 2.0mm LC/UPC DX Fiber Optic Patch Cord
Place of Origin: CHINA
Certification: CE, ISO9001
Looking for a high-quality optical patch cord with customized
service? Look no further than JFOPT! Our fiber optic patch cord is
designed for single mode use and features a 2.0mm diameter with
LC/UPC connectors in a duplex (DX) configuration. Made in CHINA,
our patch cord meets the highest standards of quality and is
certified with CE and ISO9001.
We have a minimum order quantity of 1, making it easy for you to
order exactly what you need without any excess. And with our fast
delivery time of 5-8 working days, you won't have to wait long to
receive your order. Our packaging consists of sturdy carton boxes
to ensure safe transportation to your location.
We offer flexible payment terms, including T/T, AliPay, and PayPal,
to make the purchasing process convenient for you. And with a
supply ability of 1000 pcs/day, you can rest assured that we have
the capacity to fulfill your order.
As a manufacturer, we can also customize the cable length of your
patch cord to your specifications. Our standard fiber connector is
SC to SC, and our product is compliant with SGS, ROHS, TELCORDIA,
and IEC standards.
But what sets our patch cord apart is its high impact cycle of
1500, making it durable and long-lasting for all your fiber optic
needs. Trust JFOPT for reliable and customized service for your
fiber optic patch cord.
Packing and Shipping:
Packaging and Shipping for Fiber Optic Patch Cord
The Fiber Optic Patch Cord is carefully packaged to ensure its safe
arrival at its destination. The following steps are taken to
protect the product during shipping:
- The patch cord is first wrapped in a layer of protective bubble
wrap
- It is then placed in a sturdy cardboard box
- The box is filled with packing peanuts to prevent any movement
during transit
- The box is sealed with strong tape to prevent any damage or
tampering
For international orders, the patch cord is also placed in a
waterproof and shockproof plastic bag before being packed in the
box to further protect it during shipping.
Our shipping methods include:
- Standard shipping via reputable couriers such as UPS, FedEx, and
DHL
- Expedited shipping options for urgent orders
- International shipping with tracking and insurance for added
security
Customers can also choose to arrange their own shipping if they
have a preferred carrier or shipping account.
For bulk orders, the patch cords are typically packaged in larger
boxes with ample padding and protection to ensure safe delivery.
With our careful packaging and reliable shipping methods, you can
trust that your Fiber Optic Patch Cord will arrive in perfect
condition.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is JFOPT/OEM. - Q: What is the model number of this product?
A: The model number of this product is Single Mode 2.0mm LC/UPC DX
Fiber Optic Patch Cord. - Q: Where is this product manufactured?
A: This product is manufactured in China. - Q: What certifications does this product have?
A: This product is certified with CE and ISO9001. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1. - Q: What is the price of this product?
A: The price of this product is not applicable (NA). - Q: How is this product packaged?
A: This product is packaged in a carton box. - Q: What is the estimated delivery time for this product?
A: The estimated delivery time for this product is 5-8 working
days. - Q: What are the available payment methods for this product?
A: The available payment methods for this product are T/T, AliPay,
and PayPal. - Q: What is the supply ability of this product?
A: The supply ability of this product is 1000 pcs/day.
